Cov Khoom Siv Hauv Kev Tsim Kho Kev Tsim Kho

Specifications:

AHT4000 AW/6000/AHT8000/AHT7500S

*: xaiv tau, qhov yooj yim paving dav yog 2500mm los yog 3500mm, thiab paving dav yog widened los ntawm 250mm los yog 300mm interval.

Nws yog customized los ntawm cov neeg siv khoom raws li qhov kev tsim kho tiag tiag.

**:option 1 -- QSB6.7-C220-30, Cummins, 163 kW/2200rpm;

kev xaiv 2--TAD850VE, Volvo 160kW/2200rpm.

***:option -QSB6.7-C260-30, Cummins, 194 kW/2200rpm

Tag nrho cov ntaub ntawv thiab cov lus qhia tshwj xeeb yog raug thaum lub sijhawm luam tawm thiab raug hloov pauv yam tsis tau ceeb toom ua ntej.

Nta

一,Cov yam ntxwv ua haujlwm:

AHT4000/6000/8500/7500S qhob paver yog tag nrho hydraulically tsav, centralized computer tswj nrog real-time xyuas thiab tus kheej-diagnostics, thiab ib tug automatic leveling thiab traceability system.

● TSEEM CEEB

Cov txheej txheem siab no, lub tswv yim tshiab, kev siv tshuab siab heev thiab siv tau yog cov cuab yeej siv siab rau kev tsim kho ntawm txoj kev pob zeb thiab square & tshav dav hlau pavement.

● HIGHLY FLEXIBLE CORETE SLIPFORM PAVING

Lub pob zeb pob zeb paver tuaj yeem ua tau raws li cov qauv kev ua vaj tse pavements nrog qhov dav ntawm 3.0 m - 8.5 m thiab thickness mus txog 450 mm.

●KEV PAB CUAM ENGINE MANAGEMENT SYSTEM

ECO hom teeb tsa tau hloov kho lub zog ntawm lub cav kom ntseeg tau tias cov roj siv hluav taws xob siv tau zoo thiab tsis muaj suab nrov emissions. Lub AHT6000/8500/7500S yog nruab nrog VOLVO TAD552VE/TAD851VE/TAD852VE xyaw, featuring cutting-edge, high-performance engine technology (txog 210 kW / 290HP tso zis zog) uas ua tau raws li EC Stage IIIA emissions.

●HIGH-PRECISION STEERING THIAB DRIVE SYSTEM

Nws pib leveling thiab tracing systems los xyuas kom meej paving flatness, straightness thiab smoothness ntawm txoj kev khoov. Lub ntse tswj qhov system thiab tiv thaiv skid steering system rau kev ua haujlwm du heev kom ntseeg tau qhov ncaj ntawm qhov tseeb pob zeb paving.

●PIB COMPACTION MECHANISM

Lub paver yog nruab nrog lub tshuab hydraulic vibrator, nrog cov qauv 14 hydraulic sib txuas (yeem: 9 lossis 18). Tib lub sijhawm ua haujlwm ntawm kev sib kis, khawb, vibrating, tamping thiab extruding tib lub sijhawm thaum paving kev txhawb nqa txheej thiab kev ua vaj tse.

●RUGGED MACHINE DESIGNandDURABLEPAVING Mould

Tus tsim rugged guarantees zoo ib yam high-tso tawm meej pob zeb paving nyob rau hauv nyuaj site tej yam kev mob. Lub paver tuaj yeem sib haum nrog 8.5 m (los yog 9 m) series ntawm metric paving pwm. Lub 3.0 m mus rau 8.5 m series tuaj txheem nrog ib tug hnav ib leeg thiab tuaj yeem nruab nrog ib qho kev xaiv yas profile.

●ERGONOMICS zoo meej thiab tuav

Tus neeg teb xov tooj lub platform nta ergonomic tsim, tus neeg siv-phooj ywg kev khiav hauj lwm lub tswv yim thiab tshwj xeeb visibility, tag nrho hydraulic ywj siab tsav, micro-computer nrog zaub thiab nws tus kheej-diagnostic muaj peev xwm. Ergonomically tsim nrog ntse tswj rau kev ua haujlwm yooj yim thiab yooj yim.

●TAG NRHO MODULAR MACHINE DESIGN

Tus qauv tsim qauv ua kom nws muaj peev xwm hloov kho thiab hloov kho nrog cov kev xaiv tshiab raws li tus neeg siv yuav tsum tau ua. Compact qhov ntev thiab me me retrofit yuav tsum tau ua kom yooj yim thauj khoom thiab kev thauj mus los yooj yim. Lub dowel bar inserter lossis oscillating beam thiab super smoother tuaj yeem nyob twj ywm rau hauv lub tshuab thaum thauj.

Fecov xwm txheej (9)

Cav

Volvo / Cummins dej-txias cav, muaj zog, siab-torque reservation,

tsis tshua muaj roj noj, emission nyob rau hauv raws li cov teb chaws Europe ib puag ncig.

Vibration Device - Super-high zaus, muaj zog vibration, siab ceev ntawm sab saum toj paving

Nws pib Leveling System - Nws pib theem thiab tracing systems kom paving nto flatness thiab txoj kev ncaj.

Scraping Plate - Ob lub tog raj kheej hydraulic los tswj cov khoom tsim kom muaj nuj nqis tuaj rau shaping-template, uas tuaj yeem nce & nqis tag nrho lossis nce & nqis ntawm nws tus kheej ntawm lh lossis rh.

Txoj kev mus ncig

Ob tug hydraulic-tsav crawlers thiab microcomputer tswj xyuas kom meej ua ntej-set ceev ceev, kho txoj kab ncaj nraim khiav thiab du steering nyob ib ncig ntawm curves

Zoo meej Ergonomic Tsim thiab Kev Ua Haujlwm Lub Tswv Yim

ergonomically tsim tus neeg teb xov tooj lub platform nta cov neeg siv-phooj ywg kev khiav hauj lwm lub tswv yim thiab tshwj xeeb visibility, uas ua rau txoj hauj lwm yooj yim rau tus neeg teb xov tooj.

Centralized Lubrication

Centralized lubrication tuaj yeem pib. Them lubrication grease rau high-temperature thiab motive Cheebtsam, lengthen hnav-tawm lub sij hawm zoo, zoo heev txhim khu kev ntseeg ntawm tamper thiab pub.

STANDARD LOS YOG OPTIONAL EQUIPMENT

1. Hydraulic Vibrators

Lub paver los ntawm tus qauv nrog 14 hydraulic txuas rau lub zog hydraulic vibrators (9 lossis 24 xaiv muaj)

2. Sib cais Side Bar Inserters

Sab khi bar inserters ntawm nruab rau ntawm ob sab cia li ntxig khi tuav rau pave nyob ib sab txoj kev pavements

3, Longitudinal Tie Bar Inserter (tsuas yog rau AHT8500 / SF7500S)

Longitudinal khi tuav tau muab tso rau hauv kev tiv thaiv cov slabs los ntawm kev sib nrug ntawm cov pob qij txha ntev.

4, yeem SUPER SMOOTHER

Lub super smoother ua los ntawm cov khoom siv zoo ua kom lub ntsej muag zoo meej

5, yeem Oscillating beam inserter (Tsuas yog rau AHT7500S)

Lub eccentric-powered, hnyav-lub luag hauj lwm oscillating beam nrog tsis siv neeg lifting muaj nuj nqi thaum lub tshuab nres yuav tshem tawm tej yam irregularities nyob rau hauv lub pob zeb pavement nto.

6, Xaiv DBI inserter (Tsuas yog rau AHT7500S)

Qhov dav dowel bar inserter (DBI) mounted rau ntawm lub tshuab thav duab (Tsuas yog rau AHT7500S) muaj qhov xaiv tsis siv neeg inserting muaj nuj nqi uas tuaj yeem ntxig lub dowel bar rau hauv txoj haujlwm tseeb.

AHT4000/6000/8500/7500S SERIES SLIPFORM PAVERS

1. Lub cav muaj zog

Lub cav muaj zog lav qhov ua tau zoo paving hauv qhov zoo tshaj plaws lub zog thiab lub zog torque txhua lub sijhawm.

2. Kev ua tau zoo-Optimized Eco Hom Cav Tswj

ECO hom tuaj yeem hloov kho lub cav tso zis raws li qhov yuav tsum tau ua kom tau txais kev ua haujlwm zoo ntawm lub cav, kev siv roj av thiab tsis muaj suab nrov.

3. Standardized Operating Concept, Ergonomically Optimized, Clearly Organized Control Vaj Huam Sib Luag

Nrog nws lub xeev-ntawm-kos duab screen thiab meej, lus-nruab nrab cov cim, cov tswj vaj huam sib luag txhawb kev ua haujlwm ntawm qhov chaw. Tus qauv tsim, piav qhia tus kheej ua haujlwm lub tswv yim siv rau ntawm ntau yam qauv muaj kev sib koom ua ke zoo dua.

4. Ib qho yooj yim nkag mus rau kev saib xyuas thiab tshuaj xyuas cov ntsiab lus txo qis kev saib xyuas.

5. Lub tshuab tswj tau zoo siv ZJAR PAVING tus tswv software ua kom muaj kev nyab xeeb ntawm kev khiav hauj lwm thiab cov paver ntau yam kev siv.

6. SERVICE DIAGNOSTICS SYSTEMWIDIAG

ZJAR PAVER, qhov kev pabcuam kuaj mob nrog cov qauv kev sib txuas, tso cai rau cov kws tshaj lij los daws teebmeem sai ntawm qhov chaw.

7. Transverse Slope Control System

Lub tshuab hluav taws xob hla txoj kab nqes nqes tswj kev tsim kho tshiab tsim los ntawm ARAN txo qis lub sijhawm teb lub tshuab, ua rau cov nyhuv paving xav tau.

8. Kev hloov ceev (Machine taug kev thiab kev ceev ceev)

Lub khoos phis tawj-pab kev hloov kho ceev ntawm txhua tus neeg taug kev tuaj yeem ua rau cov kev qhia tshwj xeeb kom ua raws li qhov tseeb qhov tseeb, txawm tias thaum paving ncig nkhaus.

9. Kev hloov pauv sai sai thaum thauj thiab thauj yooj yim

Qhov kev siv zog tsawg kawg nkaus uas yuav tsum tau hloov pauv lub paver thaum thauj txo cov nqi khiav haujlwm. Maneuverability thiab compact tshuab qhov ntev ua rau kev thauj mus los yooj yim.

Application Scenes:

Scenes ntawm Square thiab Tshav Dav Hlau Kev Tsim Kho

Scenes of Road and Tunnel Construction

ib-kauj ruam tsim nrog zoo thiab zoo huv si ces kaum thiab ntug

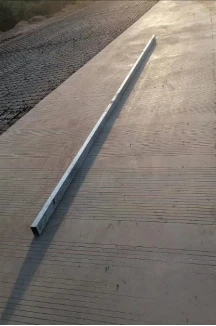

Kev khiav hauj lwm meej nrog qhov tsis siv neeg leveling system ua rau kom muaj kev sib luag ntawm qhov chaw pavement.

Hauv ntau thaj tsam ntawm Cov Neeg Esxias Qab Teb Hnub Tuaj, nws yuav tsum tso cov hlau meshes rau hauv cov pob zeb ua pob zeb.

Thiab qee qhov haujlwm yuav tsum tau muab cov hlua khi ntev tso rau hauv cov ntaub ntawv pob zeb, uas tuaj yeem muab tso ua ntej manually.

Daim ntawv thov ntawm lub mechanism rau cia li inserting rub tuav

WorkingPlus:

Qhob yog poured nrog pob zeb sib tov nyob rau hauv pem hauv ntej ntawm lub spreader; Lub paver txav mus rau pem hauv ntej ntawm ib qho kev ceev; Lub tshuab ua haujlwm pib ua haujlwm. Cov ntsia hlau spreader cais cov pob zeb sib sau ua ke nyob rau sab laug thiab txoj cai thiab faib nws sib npaug rau pem hauv ntej ntawm scraper. Qhov siab ntawm ib ntus scraper tuaj yeem hloov kho hydraulically kom khawb cov cement pob zeb rau qhov xav tau ua ntej paving thickness. Qhov sib txawv zaus plug-in vibrating qws vibrates ntawm ib qho zaus kom tshem tawm cov huab cua sib xyaw hauv cov pob zeb thaum lub sijhawm sib tov, thiab tom qab ntawd tshem tawm cov porosity.

Square Kev Tsim Kho

.

Kev tsim kho nroog hauv nroog nyob rau sab hnub tuaj Asia, qhov twg ib nrab ntawm txoj kev pavement tau ua raws

Nyob rau hauv ib lub sij hawm luv luv, lub pob zeb txoj kev paving workload tau sai sai ua tiav los ntawm kev siv siab siv. Hauv Cambodia

Kev txhim kho kev tsim kho zoo heev thiab kev ua haujlwm ua haujlwm tau txais kev qhuas zoo los ntawm cov tswv hauv zos

Kev tsim kho scenes hauv Africa hauv Nigeria, Madagascar, Senegal thiab Mauritius

Kev sib koom ua haujlwm paving, nqa kev ua haujlwm siab

Paving kev tsim kho, yog tias koj xav tau kom tsis txhob muaj kev cuam tshuam, ob peb qhob qhob formworks yuav tsum tau ua kom tiav qhov rov qab paving.

Chav Kawm 1 Txoj Kev Loj hauv Puerto Princess, Philippines

Ob qho kev xaiv ntawm kev thauj khoom rau kev thauj mus los hauv hiav txwv:

Tsis tas yuav tshem tawm qhov loj; tag nrho lub tshuab xa tuaj rau hauv lub thawv tiaj tiaj; thaum thauj mus rau qhov chaw, nws tuaj yeem ua haujlwm tom qab mounting ib qho me me ntawm cov khoom siv, raws li qhia hauv Pic saum toj no.

Disassemble tus crawler taug qab mus rau hauv cov khoom me me thiab muab tso rau hauv lub thawv raws li. Thaum xa mus rau qhov chaw ua haujlwm, ntau qhov kev sib dhos yuav tsum tau ua ua ntej nws tuaj yeem muab tso rau hauv kev tsim kho.

Chaw thau khoom rau kev thauj mus los hauv av:

Cov khoom thauj khoom rau kev thauj mus los hauv av: Nqa lub paver mus rau lub platform trailer

Tsav lub paver mus rau lub platform trailer los ntawm sab-mounted siab taug kev txhawb nqa ncej.

Kev thauj mus los ntev ntawm txoj kev tsheb ciav hlau los ntawm flatform trailer

ISO Certification CE Daim Ntawv Pov Thawj

Kev pab cuam tom qab muag:

Los ntawm kev koom tes, kev koom ua ke thiab kev tsim kho tshiab, ARAN Lub Tuam Txhab txhim kho nws txoj kev muaj zog, thiab tsim cov txheej txheem kev txhim kho tshiab.

ARAN lub tuam txhab yuav ua raws li kev lag luam lub tswv yim ntawm "Tsim tus nqi rau cov neeg siv" thiab txhim kho nws cov kev sib tw tseem ceeb kom ua tiav qhov kev hloov tshiab ntawm Zhenjiang Aran Machinery Co., LTD

Cov Khoom Muag Tom Qab Kev Pabcuam Kev cog lus

Cov chaw tsim khoom yuav lav qhov zoo ntawm cov khoom siv (tshwj tsis yog rau kev noj ib txwm, cov khoom siv cav thiab cov khoom siv) rau 12 lub hlis tom qab them nyiaj. Thaum lub sijhawm lav, tus neeg muag khoom yuav tsum lav tag nrho cov khoom siv. Thaum lub sijhawm lav, yog tias muaj qhov tsis zoo lossis kev puas tsuaj tshwm sim thaum lub sijhawm ua haujlwm ntawm cov khoom siv, tus neeg muag khoom yuav tsum thauj cov khoom seem rau tus neeg siv ntawm tus neeg muag khoom tus nqi.

Tom qab cov pob zeb paver raug muag, raws li qhov kev thov ntawm cov neeg siv kawg, cov kws tshaj lij kev pabcuam engineers los ntawm cov chaw pabcuam hauv tebchaws lossis txawv tebchaws yuav raug xa mus rau qhov chaw dawb rau kev teeb tsa, commissioning thiab kev cob qhia rau 15 hnub. Kev caij dav hlau mus ncig mus rau qhov chaw ua haujlwm thiab cov nqi tsheb thauj mus los hauv zos rau cov neeg ua haujlwm pabcuam yuav raug them los ntawm tus neeg siv. Tsis tas li ntawd, yog tias tus neeg yuav khoom qhov project xav tau cov kev pabcuam ntxiv tom qab kev cob qhia thiab kev cob qhia ua tiav, tus neeg muag khoom yuav npaj rau nws tus kws ua haujlwm pabcuam kom ncua sijhawm nyob lossis mus saib qhov chaw.

Lub tuam txhab yuav txuas ntxiv txhim kho cov khoom lag luam thiab muab kev pabcuam lav. Tom qab tau txais daim ntawv ceeb toom ntawm tus neeg yuav khoom qhov kev thov, peb yuav muab cov lus teb tsis pub dhau 24 teev, tshaj tawm cov txheej txheem tuav, thiab xa cov khoom los ntawm huab cua lossis nthuav qhia rau tus neeg siv lub vev xaib hauv lub sijhawm luv tshaj plaws, kom peb cov neeg siv txawv teb chaws tuaj yeem txaus siab rau lub neej. technical service thiab spare qhov chaw muab khoom.

Kev lees paub zoo rau kev tsim khoom thiab kev tsim khoom
