Specifications:

Kev piav qhia	Chav tsev	TSI 6000	TIAB SA 8500	AHT 7500 S
Paving dav	mm	3400-6100	4250-8500	3500-7500
Paving thickness	mm	0-450	0-450	0-500
Paving ceev	hli/min	0-10	0-10	0-10
Taug kev ceev	km/h	0-1.5	0-1.5	0-1.5
Vibrator bar		High zaus hydraulic tsav	High zaus hydraulic tsav	High zaus hydraulic tsav
Cav qauv		** TAD552VE, Volvo	*** TAD 851VE, Volvo	TSI 852VE, Volvo
Lub cav fais fab	kw/rpm	**160/2200	***185/2200	210/2200
Tsav system		hydraulic tsav	hydraulic tsav	hydraulic tsav
Zuag qhia tag nrho	mm	4000x5300x2800	4000x9300x2800	4000x9300x2800
Tshuab hnyav	kg	24000	31000	35000

* : Optionally, qhov yooj yim paving dav yog 3400mm los yog 4250mm, thiab paving dav yog widened los ntawm 250mm los yog 300mm interval. Nws yog customized los ntawm cov neeg siv khoom raws li qhov kev tsim kho tiag tiag.

**:option 1 -- QSB6.7-C220-30, Cummins, 163 kW/2200rpm;

kev xaiv 2--TAD850VE,Volvo160kW/2200rpm.

***:option -QSB6.7-C260-30, Cummins, 194 kW/2200rpm

Tag nrho cov ntaub ntawv thiab cov lus qhia tshwj xeeb yog raug thaum lub sijhawm luam tawm thiab raug hloov pauv yam tsis tau ceeb toom ua ntej.

Cov yam ntxwv ua haujlwm:

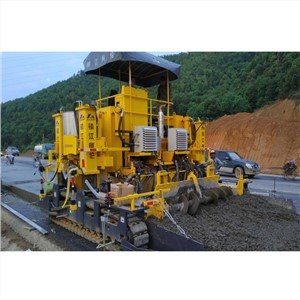

AHT7500S hnyav slip daim ntawv qhob paver yog tsim tshwj xeeb raws li kev siv tshuab siab heev ntawm US Pav-Saver zawv zawg hom cement paver los ntawm peb lub tuam txhab kom ua tau raws li cov kev xav tau rau lub tshav dav hlau thiab kev ua haujlwm hnyav cement pavement thiab txhim kho kev tsim kho kom zoo thiab ceev ntawm cov tuab loj. (lub thickness ntawm ib zaug paving yog ntau tshaj 45cm) cement qhob pavement.

6(001)

Cov pob zeb paving tshuab yog tsim los nrog tag nrho cov hydraulic tsav, centralized computer tswj nrog real-time xyuas thiab tus kheej-diagnostic peev xwm, thiab nws pib leveling thiab tracing systems.

Lub tshuab tshiab, qib siab thiab siv tau zoo ntawm cov txheej txheem siab yog cov cuab yeej tshwj xeeb tseem ceeb rau kev tsim kho kev kub ceev thiab kev ua vaj tse.

● AHT6000/8000/7500S pob zeb paving tshuab yog tsim rau kev tsim kho ntawm high-ceev railway kev txhawb nqa txheej thiab pob zeb txoj kev.

● Tib lub sijhawm ua haujlwm ntawm kev sib kis, khawb, vibrating, tamping thiab extruding tib lub sijhawm thaum paving kev txhawb nqa txheej thiab kev ua vaj tse.

● Tag nrho hydraulic ywj siab tsav, micro-computer nrog zaub thiab tus kheej muaj peev xwm kuaj tau.

● Auto leveling thiab tracing systems kom paub meej paving flatness, straightness thiab smoothness ntawm txoj kev khoov.

● Ergonomically tsim nrog kev tswj ntse rau kev ua haujlwm yooj yim thiab yooj yim.

● Cov khoom tseem ceeb tuaj yeem ua kom ntseeg tau lub tshuab thiab ua kom lub neej ntev ntawm cov paver.

Nta

Cav

Volvo / Cummins dej-txias cav, muaj zog, siab-torque reservation,

tsawg roj noj, emission nyob rau hauv raws li cov teb chaws Europe ib puag ncig.

Vibration Device

Super-siab zaus, muaj zog vibration, siab ceev ntawm sab saum toj paving

Nws pib Leveling System

Nws pib leveling thiab tracing systems kom paving nto flatness thiab txoj kev ncaj.

Scraping phaj

Tswj los ntawm ob lub tog raj kheej hydraulic los tswj cov khoom tsim kom muaj nuj nqis tuaj rau shaping-template, uas tuaj yeem nce & nqis tag nrho lossis nce & nqis ntawm nws tus kheej ntawm lh lossis rh.

Txoj kev mus ncig

Ob tug hydraulic-tsav crawlers thiab microcomputer tswj xyuas kom meej ua ntej teem ceev ceev, kho txoj kab ncaj nraim khiav thiab du steering ntawm khoov

Centralized Lubrication

Centralized lubrication tuaj yeem pib. Them lubrication grease rau high-temperature thiab motive Cheebtsam, lengthen hnav-tawm lub sij hawm zoo, zoo heev txhim khu kev ntseeg ntawm tamper thiab pub.
