Slipform Concrete Paving Tshuab
Customized slipform qhob paving txheej txheem Specifications
|
Kev piav qhia |
Chav tsev |
SWB 6000S |
AHT 7500 S |
|
Paving dav |
mm |
3500-6000 |
3500-7500 |
|
Paving thickness |
mm |
0-500 |
0-500 |
|
Paving ceev |
hli/min |
0-10 |
0-10 |
|
Taug kev ceev |
km/h |
0-1.5 |
0-1.5 |
|
Vibrator bar |
High zaus hydraulic tsav |
High zaus hydraulic tsav |
|
|
Cav qauv |
** TAD 851VE, Volvo |
*** TAD 852VE, Volvo |
|
|
Lub cav fais fab |
kw/rpm |
**185/2200 |
***210/2200 |
|
Tsav system |
hydraulic tsav |
hydraulic tsav |
|
|
Zuag qhia tag nrho |
mm |
4000x7300x2800 |
4000x9300x2800 |
|
Tshuab hnyav |
kg |
27000 |
35000 |
* :Kev xaiv--Qhov dav paving yog dav los ntawm 250mm lossis 300mm ncua sijhawm. Nws yog customized los ntawm cov neeg siv khoom raws li qhov kev tsim kho tiag tiag.
**:kev xaiv 1 -- QSB6.7-C220-30, Cummins, 163 kW/2200rpm;
***:kev xaiv -QSB6.7-C260-30, Cummins, 194 kW/2200rpm
Tag nrho cov ntaub ntawv thiab cov lus qhia tshwj xeeb yog raug thaum lub sijhawm luam tawm thiab raug hloov pauv yam tsis tau ceeb toom ua ntej.
Cov yam ntxwv ua haujlwm

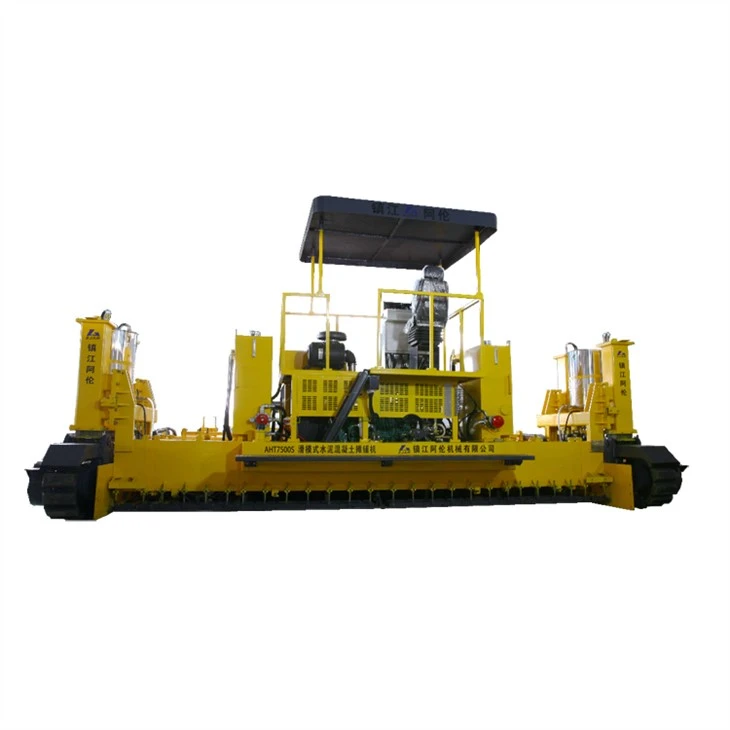

SF6000S / AHT7500S hnyav hnyav daim ntawv pob zeb paver yog tsim tshwj xeeb raws li cov cuab yeej siv siab heev ntawm US Pav-Saver zawv zawg hom cement paver los ntawm peb lub tuam txhab kom ua tau raws li cov kev xav tau ntawm tshav dav hlau thiab hnyav cement pavement kev tsim kho thiab txhim kho kev tsim kho kom zoo thiab ceev ntawm loj thickness (lub thickness ntawm ib zaug paving yog ntau tshaj 50cm) cement qhob pavement.
Customized slipform qhob paving Tshuab yog tsim los nrog tag nrho hydraulic tsav, centralized computer tswj nrog real-time xyuas thiab tus kheej-diagnostic peev xwm, thiab nws pib leveling thiab tracing systems.
Lub tshuab tshiab, qib siab thiab siv tau zoo ntawm cov txheej txheem siab yog cov cuab yeej tshwj xeeb tseem ceeb rau kev tsim kho kev kub ceev thiab kev ua vaj tse.
● SF6000S / AHT7500S pob zeb paving tshuab yog tsim rau kev tsim kho ntawm high-speed railway kev txhawb nqa txheej thiab kev ua vaj tse.
● Tib lub sijhawm ua haujlwm ntawm kev sib kis, khawb, vibrating, tamping thiab extruding tib lub sijhawm thaum paving kev txhawb nqa txheej thiab kev ua vaj tse.
● Tag nrho hydraulic ywj siab tsav, micro-computer nrog zaub thiab tus kheej muaj peev xwm kuaj xyuas.
● Auto leveling thiab tracing systems kom paub meej paving flatness, straightness thiab smoothness ntawm txoj kev khoov.
● Ergonomically tsim nrog kev tswj ntse rau kev ua haujlwm yooj yim thiab yooj yim.
● Cov khoom tseem ceeb tuaj yeem ua kom ntseeg tau lub tshuab thiab ua kom lub neej ntev ntawm cov paver.
Nta
Cav
Volvo / Cummins dej-txias cav, muaj zog, siab-torque reservation, tsis tshua muaj roj noj, emission nyob rau hauv raws li cov teb chaws Europe ib puag ncig.
Vibration Device
Super-siab zaus, muaj zog vibration, siab ceev ntawm sab saum toj paving
Nws pib Leveling System
Nws pib leveling thiab tracing systems kom paving nto flatness thiab txoj kev ncaj.
Scraping phaj
Tswj los ntawm ob lub tog raj kheej hydraulic los tswj cov khoom tsim kom muaj nuj nqis tuaj rau shaping-template, uas tuaj yeem nce & nqis tag nrho lossis nce & nqis ntawm nws tus kheej ntawm lh lossis rh.
Txoj kev mus ncig
Ob tug hydraulic-tsav crawlers thiab microcomputer tswj xyuas kom meej ua ntej teem ceev ceev, kho txoj kab ncaj nraim khiav thiab du steering ntawm khoov
Centralized Lubrication
Centralized lubrication tuaj yeem pib. Them lubrication grease rau high-temperature thiab motive Cheebtsam, lengthen hnav-tawm lub sij hawm zoo, zoo heev txhim khu kev ntseeg ntawm tamper thiab pub.
Qhov zoo
Zhenjiang ARAN Machinery Co., Ltd. tau txais cov cuab yeej qub qub ntawm Zhenjiang Road Machinery tuam txhab cov khoom lag luam thiab tau txhim kho cov khoom lag luam thiab kev ua tau zoo. 3D computer-aided tsim tshuab tau txais tag nrho hauv lub tuam txhab. Nrog muaj zog muaj peev xwm ntawm kev ywj pheej innovation thiab kev loj hlob, lub tuam txhab muaj ib tug xov tooj ntawm patents tso cai. Zhenjiang ARAN muab kev ruaj ntseg zoo rau cov khoom loj ntawm high-tech txoj kev machinery, thiab tsim nyog tej yam kev mob rau kev tshawb fawb thiab kev loj hlob ntawm cov khoom tshiab, sim ua hauj lwm thiab high-tech industrialization.
Cov Lus Qhia Ua Haujlwm:
Ua kom muaj kev sib raug zoo ntawm pab pawg, muab kev ua si tag nrho rau pab pawg neeg lub siab, coj kev tshawb fawb thiab thev naus laus zis tshiab ua lub zog tsav tsheb, ua kom siv tag nrho cov txiaj ntsig zoo, txhim kho kev lag luam tshiab, ua kom tshwj xeeb thiab zoo tshaj plaws, ua rau Zhenjiang Aran machinery qib mus rau qib siab dua.
Daim ntawv thov Scenes
Kev tsim kho tshav dav hlau
Slipformed pavement nrog txawm nto thiab zoo compactness
AHT7500S ib-kauj ruam ua nrog zoo thiab zoo huv si ces kaum thiab ntug
Kev khiav hauj lwm meej nrog cov txheej txheem tsis siv neeg theem ua rau muaj qhov sib luag ntawm qhov chaw pavement.
Qhov chaw ntawm nruab nrab dowel tuav
Daim ntawv thov ntawm lub mechanism rau cia li inserting rub tuav
Txoj Cai Ua Haujlwm:
Cov pob zeb ua pob zeb nchuav sib xyaw ua ke rau pem hauv ntej ntawm tus neeg sib tw; lub paver txav mus rau pem hauv ntej ntawm ib qho kev ceev; kev ua haujlwm mechanism pib ua haujlwm. Cov ntsia hlau spreader cais cov pob zeb ua ke raws li cov lus qhia ntawm sab laug thiab txoj cai thiab sib npaug faib rau pem hauv ntej ntawm lub phaj scraping. Lub phaj scraping ib ntus, nrog rau qhov siab hydraulically adjustable, scrapes cov cement pob zeb mus rau qhov yuav tsum tau ua ntej paving thickness. Lub zaus hloov dua siab tshiab plug-in vibrating pas nrig vibrates ntawm ib qho zaus kom tshem tawm cov cua tawm uas sib xyaw hauv cov pob zeb thaum sib tov thiab tom qab ntawd tshem tawm cov pores.
Lub slipform paver tuaj yeem ua txoj hauv kev kom zoo tagnrho compaction, thiab tsim ib txheej slurry pas dej ua ke nrog ib qho thickness ntawm qhov chaw. Nrog rau kev xa tawm ntawm lub paver, screeding thiab kev tsim ntawm txoj kev ua tiav.
Kev sib koom ua haujlwm paving ua rau muaj kev ua haujlwm siab
Senegal: Kev tsim kho pavement ntawm Dakar Expressway los ntawm CRBC
Packing thiab Shipping
Ob qho kev xaiv ntawm cov khoom thauj khoom rau kev thauj mus los hauv hiav txwv:
Tsis tas yuav tshem tawm qhov loj me xws li cov crawler khiav; tag nrho lub tshuab xa tuaj rau hauv lub thawv tiaj tiaj; thaum thauj mus rau qhov chaw tsim kho, nws tuaj yeem ua haujlwm tom qab kev teeb tsa me me ntawm cov khoom siv, raws li pom hauv Pic saum toj no.
Disassemble tus crawler taug qab ntawm tag nrho cov cuab yeej siv tshuab rau hauv cov khoom me me thiab muab tso rau hauv lub thawv raws li. Thaum xa mus rau qhov chaw ua haujlwm, muaj ntau qhov kev sib dhos ua haujlwm ua ntej nws tuaj yeem muab tso rau hauv kev tsim kho.
Loading for Land Transportation:
Nqa lub paver mus rau lub platform trailer
Tsav lub paver mus rau lub platform trailer los ntawm sab-mounted siab taug kev txhawb nqa ncej.
Kev thauj mus los ntev ntawm txoj kev tsheb ciav hlau los ntawm flatform trailer
ISO daim ntawv pov thawj
CE daim ntawv pov thawj
Kev pab cuam tom qab muag:
Zhenjiang ARAN Machinery Co., Ltd. tau txais cov cuab yeej qub qub ntawm Zhenjiang Road Machinery tuam txhab cov khoom lag luam thiab tau txhim kho cov khoom lag luam thiab kev ua tau zoo. 3D computer-aided tsim tshuab tau txais tag nrho hauv lub tuam txhab. Nrog muaj zog muaj peev xwm ntawm kev ywj pheej innovation thiab kev loj hlob, lub tuam txhab muaj ib tug xov tooj ntawm patents tso cai. Zhenjiang ARAN muab kev ruaj ntseg zoo rau cov khoom loj ntawm high-tech txoj kev machinery, thiab tsim nyog tej yam kev mob rau kev tshawb fawb thiab kev loj hlob ntawm cov khoom tshiab, sim ua hauj lwm thiab high-tech industrialization. Los ntawm kev sib koom ua ke thiab kev koom ua ke thiab kev tsim kho tshiab, Zhenjiang ARAN ntxiv dag zog rau nws lub zog nyob ruaj khov, txhim kho nws txoj kev muaj zog, thiab tsim cov txheej txheem kev txhim kho tshiab.
